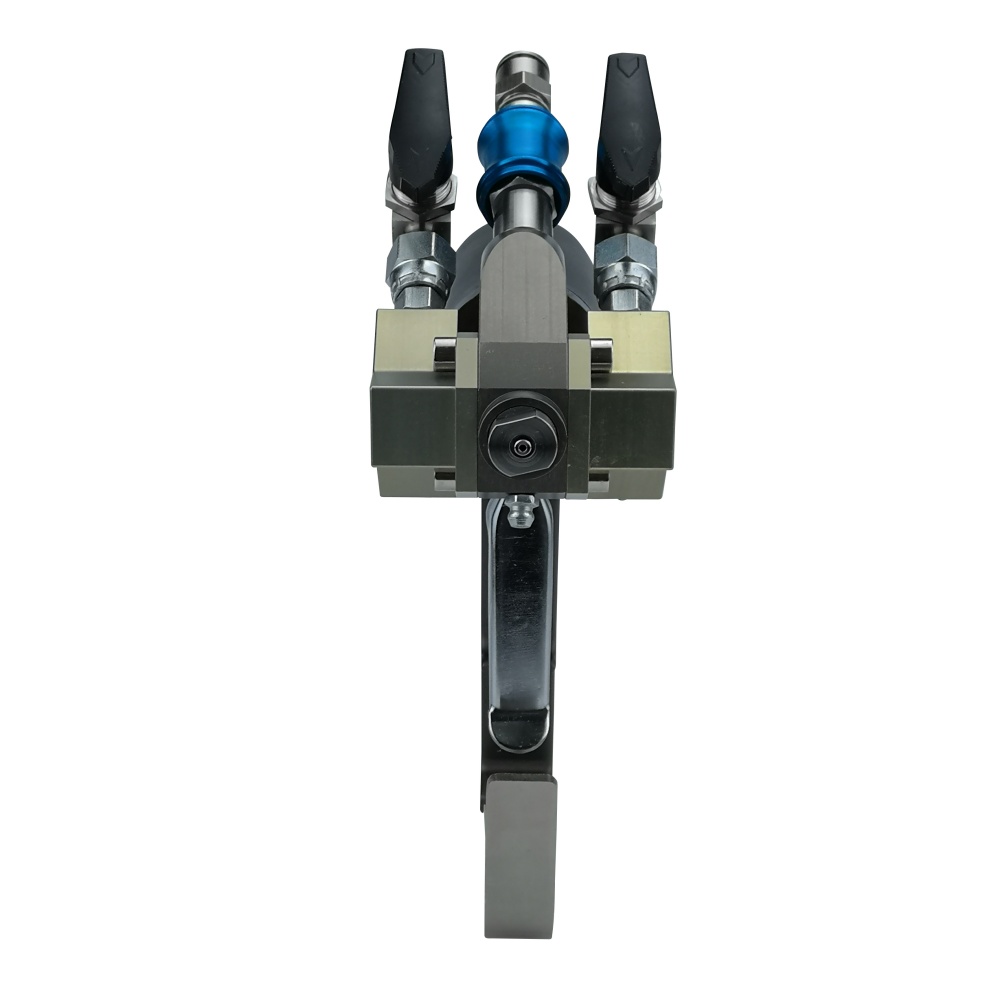

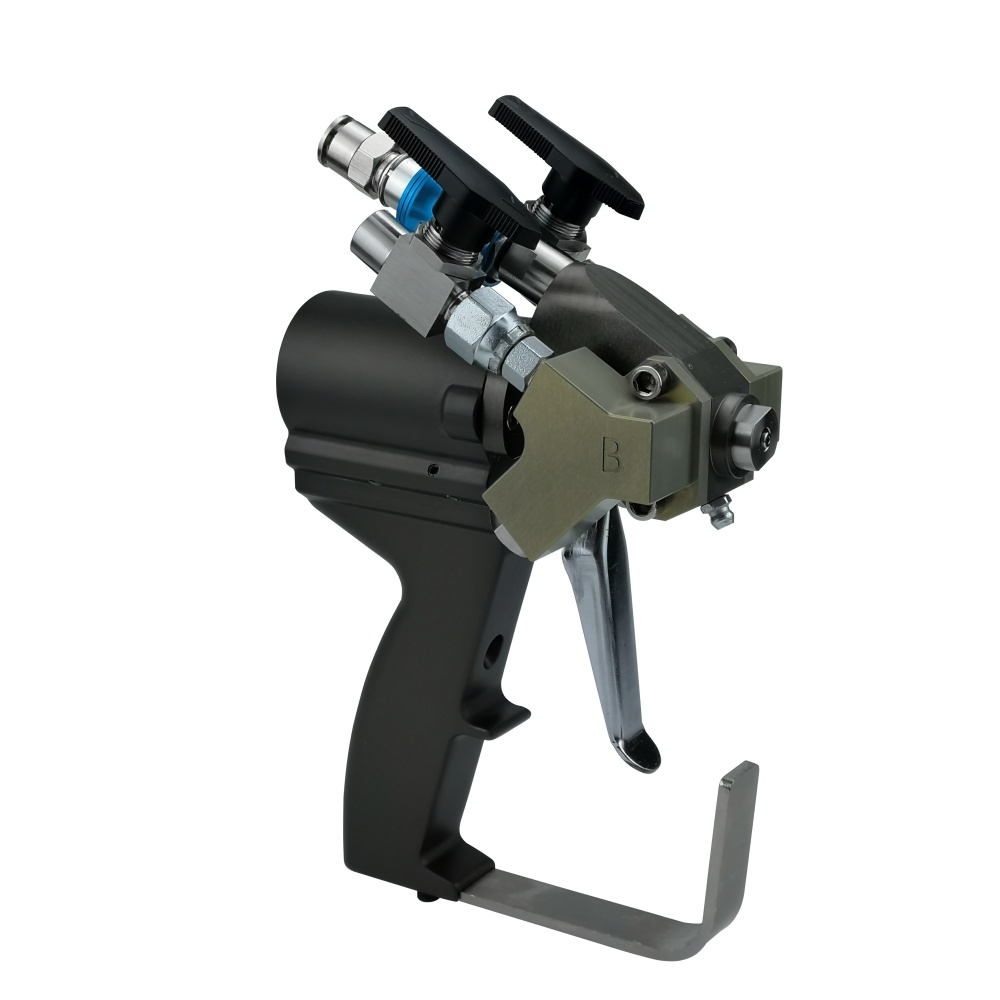

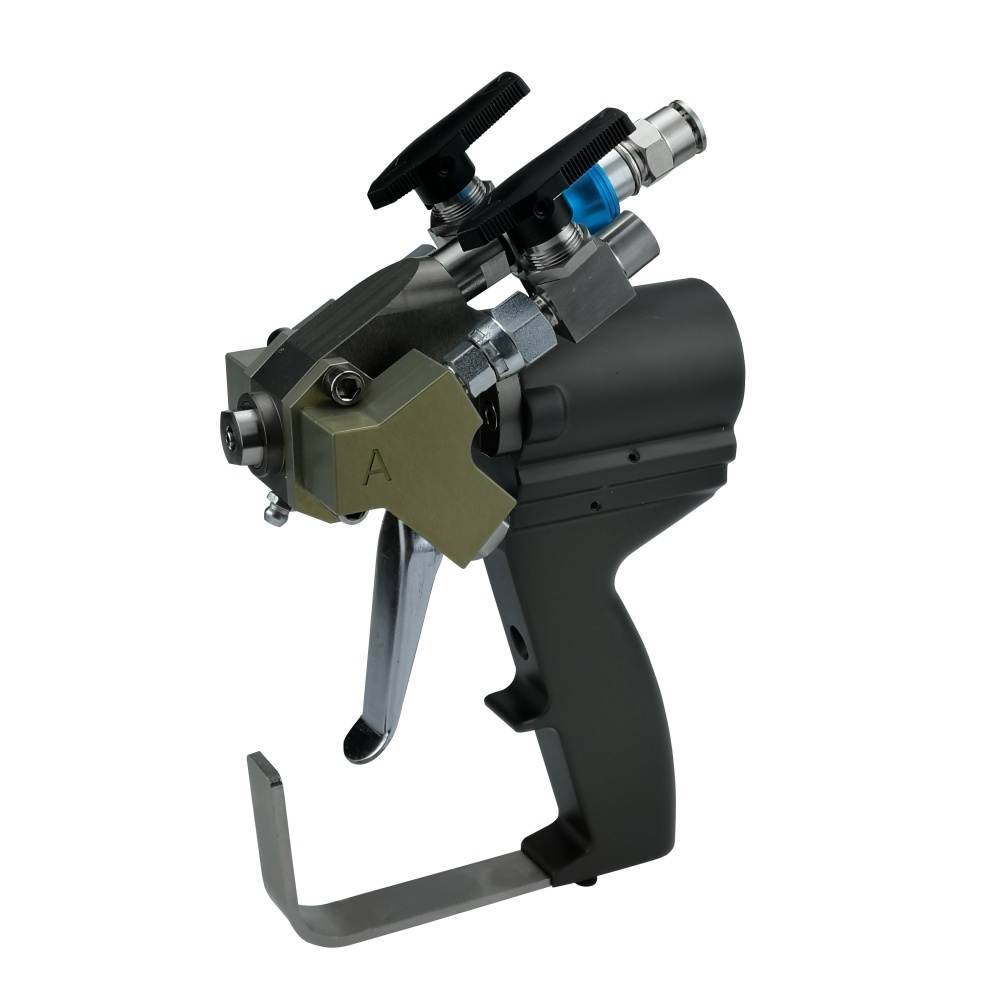

A5 Spray Gun

ABURE A5 Spray Gun

Product description: For nonflammable polyurethane foam and polyurea. The A5 spray gun adopts a dual piston structure to provide powerful power, and the nozzle and mix chamber are separated for easy maintenance and cleani
INQUIRY

Round Pattern Guns

Gun Part No.	Round Mix Chamber Part No.	Round Tip Part No.	Round Tip Orifice Size in. (mm)	Equivalent Size	Flow Rate Kg/min (lb/min)
Gun Part No.	Round Mix Chamber Part No.	Round Tip Part No.	Round Tip Orifice Size in. (mm)	Equivalent Size	Flow Rate Kg/min (lb/min)
ABRA50A	A5-51-0A	A5-53-0A	0.047 (1.20)	2929	3.1（6.8）
ABRA500	A5-51-00	A5-53-00	0.052 (1.30)	3737	3.8 （8.4）
ABRA501	A5-51-01	A5-53-01	0.06 (1.50)	4242	4.7（10.4）
ABRA502	A5-51-02	A5-53-02	0.07 (1.8)	5252	7.1（15.6）
ABRA503	A5-51-03	A5-53-03	0.086 (2.20)	6060	9.8（21.5）
ABRA504	A5-51-04	A5-53-04	0.094 (2.40)	7070	13.8（30.3）

Flat Pattern Spray Guns
Gun Part No.	Flat Mix Chamber Part No.	Equivalent Size	Flat Tip Part No.	Pattern at 600 mm from target (mm)	Flow Rate Kg/min (lb/min)
Gun Part No.	Flat Mix Chamber Part No.	Equivalent Size	Flat Tip Part No.	Pattern at 600 mm from target (mm)	Flow Rate Kg/min (lb/min)
1000000	A5-F0S	2020	ABR060S	100-150	0.9（2.0）
1000001	A5-F0S	2020	ABR07AA	150-200	1.9（4.2）
1000002	A5-F0A	2929	ABR080A	200-250	3.6（7.9）
1000003	A5-F01	4242	ABR080A	200-250	3.9（8.6）
1000004	A5-F02	5252	ABR080A	200-250	4.4（9.7）
1000005	A5-F0A	2929	ABR120A	300-350	3.8（8.3）
1000006	A5-F01	4242	ABR120A	300-350	4.6（10.1）
1000007	A5-F02	5252	ABR120A	300-350	5.1（11.2）
1000008	A5-F0A	2929	ABR160A	400-450	4.0（8.8）
1000009	A5-F01	4242	ABR160A	400-450	4.9（10.7）
1000010	A5-F02	5252	ABR160A	400-450	5.3（11.6）
1000011	A5-F0A	2929	ABR1601	400-450	4.5（9.9）
1000012	A5-F01	4242	ABR1601	400-450	5.5（12.1）
1000013	A5-F02	5252	ABR1601	400-450	5.8（12.7）

*PRESSURE in 1500 psi(The flow rate and target are for reference only, and are affected by ambient temperature, liquid viscosity and machine pressure fluctuations)

Description

1. Remove the fittings from the spray gun, typically theseball valves are 1/8 in.NPT female and the air slide valve are 1/8 in.PT female.

2. CHECK VALVE FILTER can be removed without removing the SIDE BLOCK from the gun body.

3. The side blocks are made of aerospace materials that are harder, lighter, and more wear resistant, and the threads are not broken.

4. This spray gun is fitted with a pair of wear-resistant metal side seals.We also offer a pair of Polycarballoy side seals with high strength, high wear resistance and better sealing to keep the fluid HOUSING clean.This Polycarballoy Side Seal does not wear the Mix Chamber and avoids the high cost of replacing the Mix Chamber.

5.The air piston of gun is made of hard alloy material instead of the competitor's aluminum material, so you don't have to worry about the downtime caused by the broken front air piston.

6. The side block is connected to the ball valve via a SWIVEL joint, so the direction of the ball valve can be easily adjusted. It protects the 1/8 NPT thread at the side block fluid inlet.

7. Complete Repair Kit for AB-A5 (includes all O-rings, Spring, SEAL, BALL, SET SCREW, FILTER SCREEN you need to rebuild)

8. The tools and other spare parts are so complete that you can use them for a long time.
