Transfer Pumps

  • ABURE TP05 Transfer Pump
  • ABURE TP05 Transfer Pump
ABURE TP05 Transfer PumpABURE TP05 Transfer Pump

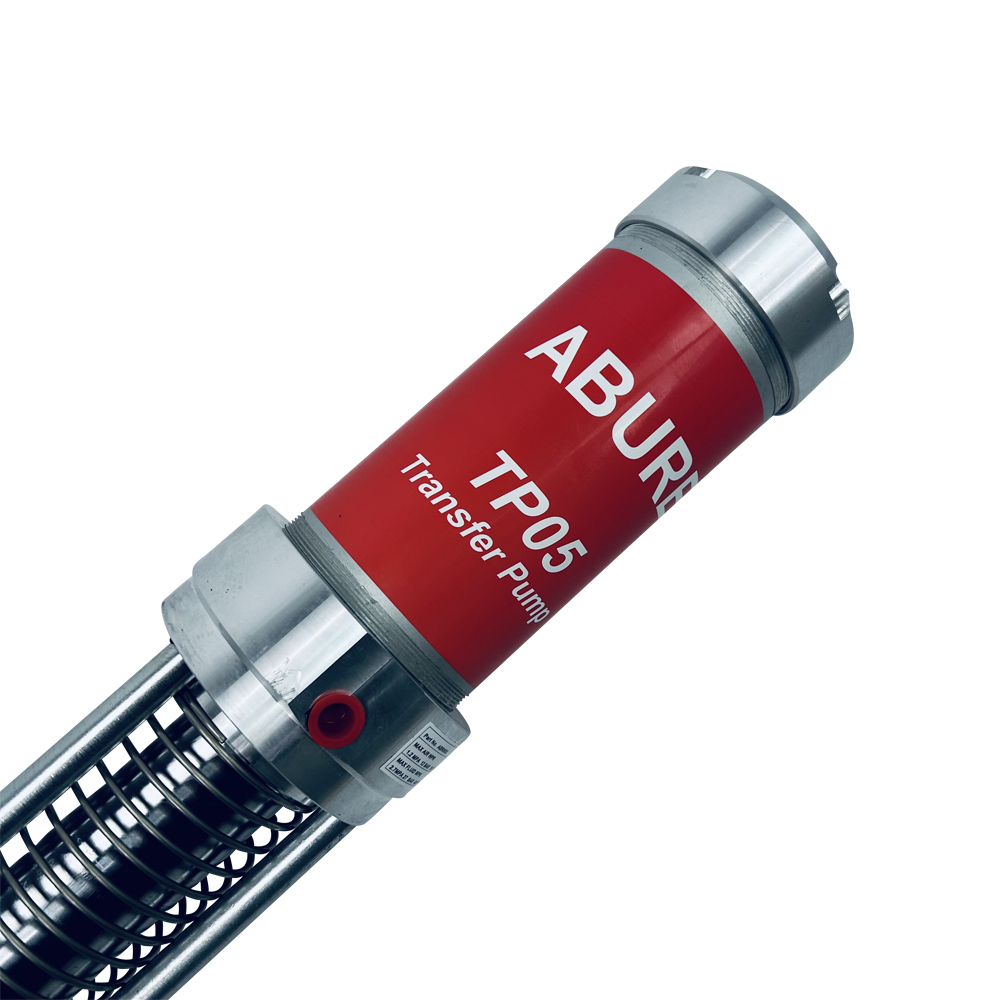

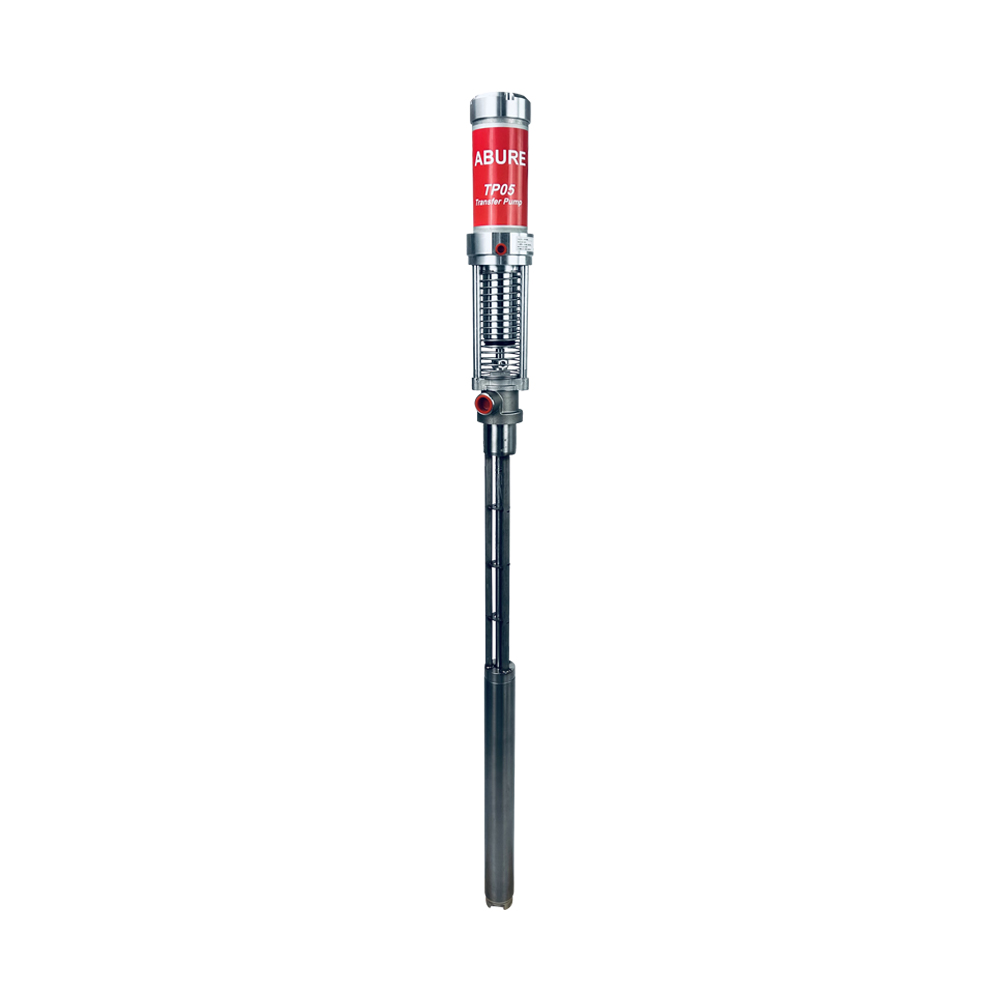

ABURE TP05 Transfer Pump
  • Product description: Used to transfer nonflammable polyurethane foam, polyurea, paint and other similar viscosity chemicals. The motor and shaft can be separated outside the air motor, making maintenance of the motor more
  • INQUIRY

Technical Specifications

Pressure ratio

2:1

Maximum air input pressure

180 psi, 1.2 MPa, 12 bar

Maximum fluid output pressure

360 psi, 2.48 Mpa, 24.8bar

Maximum continuous output flow

5 gpm, 18.9 lpm

Maximum intermittent output flow

7.5 gpm, 28.4 lpm

Maximum insertion depth

33.7 in. 856mm

Air inlet size

1/4 npt(f)

Fluid outlet size

3/4 npt (f)

Wetted materials

Stainless steel, PTFE, UHMWPE

Weight

22.5 lb., 10.2kg


Description

The motor and shaft can be separated outside the air motor, making maintenance of the motor more convenient. In addition, the upgraded air motor adopts a special sealed structure for longer working time and quieter operation.
